Here are some common types and uses of wire rope end fittings

2024-03-15

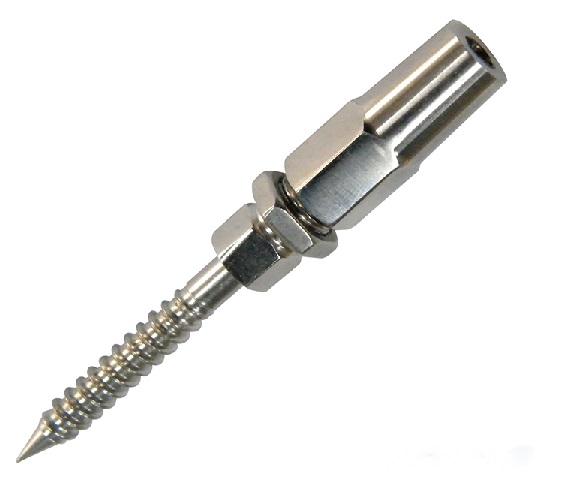

Wire rope end fittings are specialized components used to terminate, secure, or connect wire ropes in various applications. They are designed to ensure a strong and reliable attachment between the wire rope and other components such as hooks, eyes, or fixtures. Here are some common types and uses of wire rope end fittings:

1. Wire Rope Clips: Wire rope clips, also known as cable clamps or u-bolt clamps, are commonly used to form eye terminations or loop ends in wire ropes. They consist of a u-shaped bolt, a saddle, and two nuts that secure the wire rope in place. Wire rope clips are widely used in construction, rigging, and marine applications.

2. Swaged Terminals: Swaged terminals, also known as swage fittings or swage sleeves, are used to terminate wire ropes by compressing or swaging the wire rope around the fitting. Swaged terminals provide a strong and permanent attachment and are commonly used in architectural, marine, and aerospace applications.

3. Thimbles: Thimbles are metal inserts used to protect the eye of a wire rope from wear and abrasion. They are commonly used in conjunction with wire rope clips or swaged terminals to form eye terminations. Thimbles are available in various materials, including steel, stainless steel, and galvanized steel, and are used in a wide range of lifting and rigging applications.

4. Wire Rope End Stops: Wire rope end stops, also known as wire rope sleeves or ferrules, are used to terminate wire ropes by crimping or compressing the wire rope around the fitting. They provide a secure and permanent attachment and are commonly used in industrial, marine, and automotive applications.

5. Eye Hooks: Eye hooks are hooks with a closed eyelet at one end, allowing for the direct attachment of wire ropes or cables. They are commonly used in lifting and rigging applications to create secure anchor points for hoisting or pulling loads.

6. Wire Rope Sockets: Wire rope sockets are specialized fittings used to terminate wire ropes by splicing or attaching the wire rope to a fixed structure or component. They are commonly used in heavy lifting and construction applications where a strong and reliable attachment is required.

7. Turnbuckles: Turnbuckles are adjustable fittings used to tension wire ropes or cables. They consist of two threaded eyelets connected by a central body, allowing for easy adjustment of tension by rotating the body. Turnbuckles are commonly used in applications such as fence construction, cable rigging, and suspension bridges.

8. Quick Links: Quick links are screw-fastening connectors used to join wire ropes or chains together. They feature a threaded closure mechanism that allows for quick and easy attachment and removal of wire ropes or cables. Quick links are commonly used in temporary rigging, camping, and outdoor recreational activities.

These are just a few examples of wire rope end fittings available for various applications. The selection of the appropriate fitting depends on factors such as the type of wire rope, the application requirements, and the desired level of strength and security. It's essential to choose fittings that are compatible with the wire rope and meet the specific needs of the application to ensure a safe and reliable connection.
