Key features and considerations associated with high voltage piercing connectors

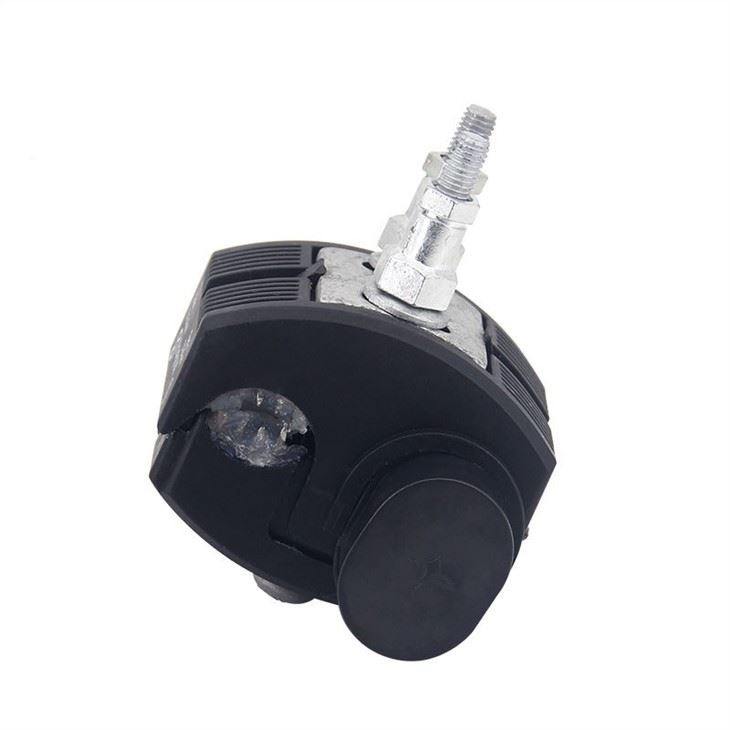

High Voltage Piercing Connectors are specialized electrical connectors designed to establish secure electrical connections on high-voltage conductors without the need for stripping the insulation. These connectors are specifically engineered to meet the demands of high-voltage applications, providing reliable performance and safety. Here are some key features and considerations associated with high voltage piercing connectors:

1. High Voltage Rating: High voltage piercing connectors are designed to handle elevated voltages typically ranging from thousands to tens of thousands of volts. They are engineered with materials and designs capable of withstanding the electrical stresses associated with high-voltage systems.

2. Insulation Piercing Technology: Like other insulation piercing connectors, high voltage piercing connectors utilize piercing elements to make contact with the conductor inside the insulation. This technology eliminates the need to strip the insulation, simplifying installation and reducing the risk of damage to the conductor.

3. Robust Construction: High voltage piercing connectors are constructed from materials chosen for their strength, conductivity, and resistance to electrical and environmental stresses. Common materials include aluminum, copper, and various alloys engineered for high-voltage applications.

4. Secure Connection: Ensuring a secure and reliable electrical connection is paramount in high-voltage applications. High voltage piercing connectors are designed to provide low-resistance connections that maintain electrical integrity under high-voltage conditions, reducing the risk of arcing, overheating, and other potential hazards.

5. Weatherproofing and Insulation: Given the typically outdoor or exposed installation environments of high-voltage systems, high voltage piercing connectors often incorporate weatherproofing and insulation features. These features protect the connector and the electrical connection from moisture, UV radiation, temperature extremes, and other environmental factors that could compromise performance and safety.

6. Compliance and Standards: High voltage piercing connectors are designed and manufactured in compliance with relevant industry standards and regulations governing high-voltage electrical equipment. This ensures that they meet stringent safety and performance requirements for use in high-voltage applications.

7. Installation Considerations: Installation of high voltage piercing connectors may require specialized tools and techniques due to the higher voltages involved. Installers should follow manufacturer instructions and adhere to industry best practices to ensure proper installation and safe operation.

Overall, high voltage piercing connectors provide a crucial solution for establishing secure electrical connections in high-voltage applications, offering reliability, safety, and ease of installation. Proper selection, installation, and maintenance are essential to ensure the optimal performance and longevity of these connectors in high-voltage systems.
