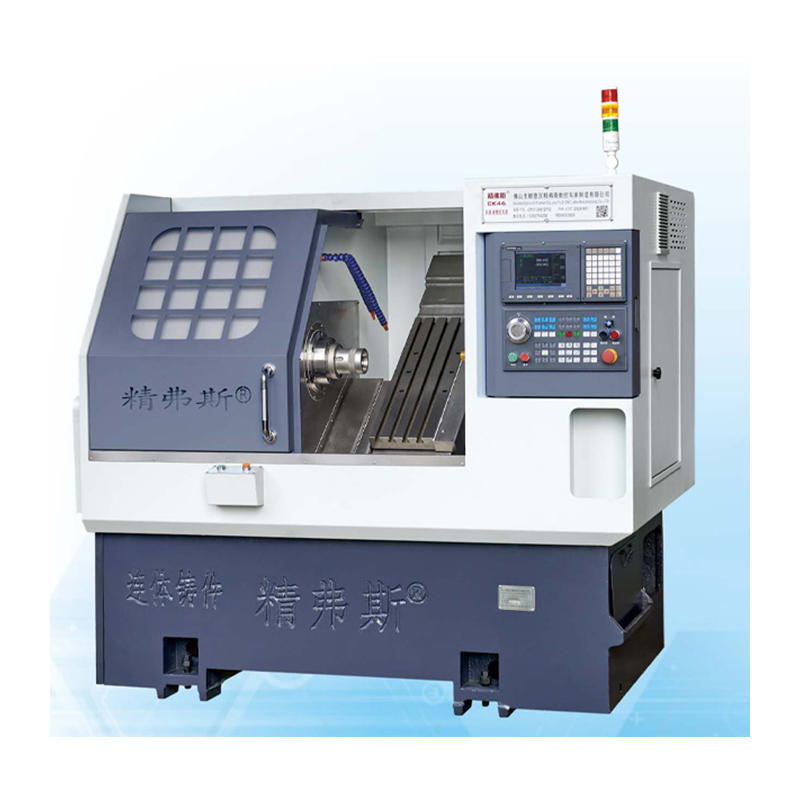

Slant-bed CNC Lathe: Precision, Stability, and Efficiency in Modern Machining

In today’s high-precision manufacturing environment, CNC (Computer Numerical Control) machines have become essential for producing complex components quickly and accurately. Among them, the Slant-bed CNC Lathe stands out as a powerful tool that offers superior rigidity, chip removal, and cutting efficiency. It is especially favored in industries such as aerospace, automotive, medical device manufacturing, and general engineering.

What Is a Slant-bed CNC Lathe?

A Slant-bed CNC Lathe is a type of computer-controlled turning machine characterized by its bed being slanted—typically at an angle between 30° and 60°. This angled design provides better access to the workpiece, improved chip evacuation, and greater structural rigidity compared to flat-bed lathes.

Key Features and Advantages

1. Superior Chip Removal

  The slanted bed allows gravity to assist in removing chips from the cutting zone, improving surface finish and reducing the chance of tool interference or damage.

2. Enhanced Rigidity and Stability

  The slant-bed structure provides a more stable cutting environment, which reduces vibration and improves machining accuracy—especially under heavy-duty or high-speed operations.

3. Better Ergonomics and Accessibility

  Operators benefit from easier tool setup, maintenance, and part loading/unloading due to the inclined layout.

4. High-Speed and Multi-Axis Capability

  Many slant-bed lathes are equipped with live tooling and sub-spindles, enabling complex multi-axis operations like milling, drilling, and tapping in a single setup.

5. Compact and Efficient Layout

  Slant-bed CNC lathes often have a smaller footprint than flat-bed machines with similar capabilities, optimizing workshop space.

Applications in Industry

Automotive Industry: Manufacturing engine parts, shafts, gear components, and brake systems.

Aerospace: Producing high-precision turbine components and landing gear parts.

Medical Devices: Crafting surgical tools and implant components with tight tolerances.

General Engineering: Versatile enough for job shops and custom part manufacturing.

Technological Enhancements

Modern slant-bed CNC lathes often come equipped with:

High-speed spindles and servo motors

Advanced CNC controllers (e.g., FANUC, Siemens, Mitsubishi)

Tool turrets with automatic tool changers

Coolant-through-tool systems

Automatic chip conveyors and part catchers

These upgrades further enhance productivity, reduce downtime, and support automated or lights-out manufacturing.

Maintenance and Longevity

While slant-bed CNC lathes are known for their durability, regular maintenance is essential to ensure performance. This includes:

Lubrication system checks

Spindle and axis alignment inspections

Coolant and chip system cleaning

Software updates and system calibration

Conclusion

The Slant-bed CNC Lathe is a modern machining powerhouse, offering unmatched precision, efficiency, and durability for high-demand industries. Its advanced features and ergonomic design make it a preferred choice for manufacturers seeking to enhance production quality and reduce cycle time. Whether used for batch production or intricate custom parts, the slant-bed CNC lathe delivers consistent results that meet the demands of modern manufacturing.
