Steps for Precision CNC Machining

2023-12-19

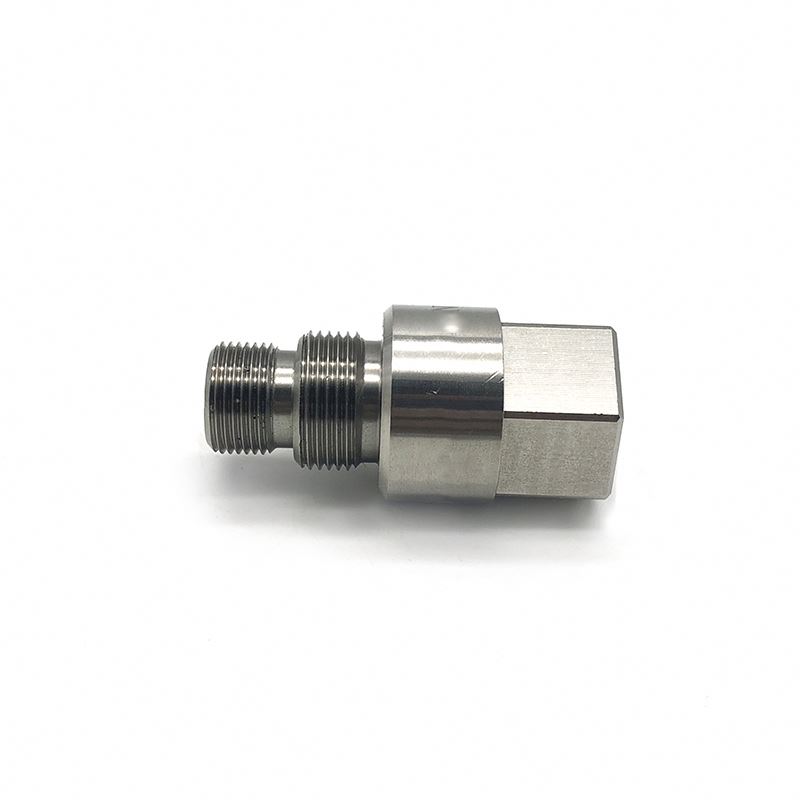

Precision CNC machining is a manufacturing process that utilizes computer numerical control (CNC) machines to create highly accurate and intricate parts from various materials. Precision CNC machining parts are often used in industries where tight tolerances, complex geometries, and high-quality finishes are essential. Here's an overview of the steps involved in producing precision CNC machining parts:

Steps for Precision CNC Machining:

1. Design and CAD Modeling:

  - Begin with a detailed design of the part using Computer-Aided Design (CAD) software. The design includes specifications such as dimensions, tolerances, and material requirements.

2. Material Selection:

  - Choose the appropriate material based on the application requirements. Common materials include metals (aluminum, stainless steel, titanium), plastics, and various alloys.

3. Toolpath Programming:

  - Generate a toolpath program that guides the CNC machine through the cutting process. This program includes instructions for tool movements, cutting speeds, and other parameters.

4. Set Up CNC Machine:

  - Prepare the CNC machine by securing the raw material in the machine's workholding device. Load the tooling required for machining, and ensure proper calibration.

5. CNC Machining Operations:

  - The CNC machine executes the programmed toolpath, performing various machining operations such as milling, turning, drilling, and threading. The cutting tools remove material to shape the part according to the design.

6. Quality Checks:

  - Conduct in-process quality checks using precision measuring instruments such as micrometers, calipers, or Coordinate Measuring Machines (CMM). Verify that the dimensions and tolerances meet the specifications.

7. Surface Finishing:

  - Depending on the application and design requirements, perform additional operations for surface finishing. This may include polishing, grinding, or applying coatings for improved aesthetics or functionality.

8. Final Inspection:

  - Perform a final inspection of the machined parts to ensure that they meet all specifications and quality standards. Check for any defects, deviations, or imperfections.

9. Assembly (If Applicable):

  - If the CNC machined parts are components of a larger assembly, proceed with the assembly process according to the design specifications.

10. Packaging and Shipping:

   - Package the precision CNC machining parts securely to prevent damage during shipping. Label packages appropriately and ensure that they are shipped to the desired destination.

Considerations for Precision CNC Machining:

- Tolerances: Clearly define and communicate the required tolerances for each dimension in the design.

- Tool Selection: Choose appropriate cutting tools based on the material and machining operations. High-quality tools contribute to precision and surface finish.

- Material Waste Reduction: Optimize the design and toolpath to minimize material waste and improve efficiency.

- Prototyping: Consider creating prototypes or small batches for testing and validation before large-scale production.

- Regulatory Compliance: Ensure that the manufacturing process and materials used comply with industry standards and regulations.

Working with experienced CNC machining services is crucial to achieving precision and high-quality results. Skilled machinists, advanced CNC equipment, and quality control measures contribute to the success of precision CNC machining projects.
