Types of Instrument Transformers

Instrument Transformers are specialized transformers used in electrical systems to accurately measure voltage, current, or both, and provide these measurements in a form that is safe and convenient for instruments and protective devices. They play a critical role in ensuring the accuracy of measurements in high-voltage and high-current circuits by stepping down these values to levels that can be safely handled by metering devices.

Types of Instrument Transformers:

1. Current Transformer (CT):

  - Function: Reduces high currents to a lower, proportional current that can be safely measured by instruments such as ammeters, relays, and energy meters.

  - Application: Used for current measurement, protection, and monitoring in power systems.

  - Example: A CT with a ratio of 1000:5 will reduce a current of 1000 amps in the primary circuit to 5 amps in the secondary circuit.

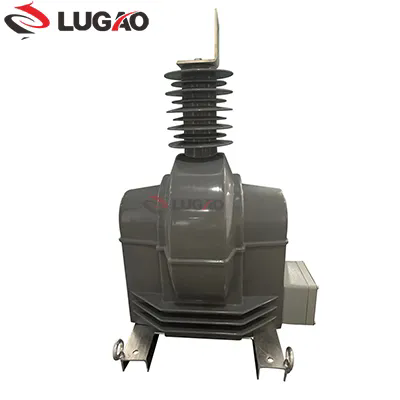

2. Voltage Transformer (VT) or Potential Transformer (PT):

  - Function: Steps down high voltages to a lower, proportional voltage that can be measured by voltmeters, relays, and energy meters.

  - Application: Used for voltage measurement and protection in power systems.

  - Example: A VT with a ratio of 10,000:100 will reduce a voltage of 10,000 volts in the primary circuit to 100 volts in the secondary circuit.

3. Combined Instrument Transformer:

  - Function: Combines both current and voltage measurement capabilities in a single unit.

  - Application: Used in systems where space is limited or where it is convenient to measure both current and voltage from a single point.

Key Features of Instrument Transformers:

1. Accuracy: Instrument transformers are designed to provide accurate measurement of current or voltage, maintaining a precise ratio between the primary and secondary values.

2. Safety: By stepping down high voltages and currents, instrument transformers allow safe monitoring and measurement without the need for direct contact with high-energy circuits.

3. Isolation: They provide electrical isolation between the high-voltage/high-current primary circuit and the low-voltage/low-current secondary circuit, protecting measurement devices and personnel.

4. Standardization: Instrument transformers ensure that measurements are consistent and standardized across different devices and systems, which is critical for accurate metering and billing.

5. Protection: In addition to measurement, they are also integral to protective relay systems, enabling the detection of faults and triggering protective actions like circuit breaker operation.

Applications of Instrument Transformers:

1. Energy Metering:

  - Used in commercial, industrial, and utility settings to accurately measure electricity consumption for billing purposes.

  - CTs measure the current, and VTs measure the voltage, with the product of these values providing the power consumed.

2. Protection Systems:

  - Instrument transformers feed precise current and voltage data to protective relays. In case of an abnormal condition like overcurrent or overvoltage, the relay can isolate the faulty section by operating circuit breakers.

  - CTs are commonly used for overcurrent protection, while VTs are used for overvoltage protection.

3. System Monitoring and Control:

  - Continuous monitoring of electrical parameters like current, voltage, and power allows for real-time control and optimization of power systems.

  - Instrument transformers are essential in grid management, ensuring stability and efficiency.

4. Power Quality Analysis:

  - Accurate measurement of voltage and current harmonics, phase angles, and other parameters is essential for assessing power quality. Instrument transformers provide the necessary data for these analyses.

How They Work:

- Current Transformer (CT):

 - The CT is connected in series with the circuit carrying the high current (primary winding). The magnetic field generated by the primary current induces a proportional current in the secondary winding, which is connected to measuring instruments.

- Voltage Transformer (VT):

 - The VT is connected in parallel with the high-voltage circuit. The high voltage in the primary winding induces a lower, proportional voltage in the secondary winding, which is safe for instruments to measure.

Importance:

- Accuracy and Reliability: Instrument transformers ensure that high-voltage and high-current measurements are accurate, which is crucial for both system operation and billing.

- Safety: By stepping down voltages and currents to manageable levels, they protect both equipment and operators from the dangers of high-energy circuits.

- System Protection: Instrument transformers are integral to protection systems, providing the necessary input for relays to detect and respond to faults, preventing equipment damage and ensuring safety.

Example of Usage:

- In a Substation: An instrument transformer setup may include several CTs and VTs connected to high-voltage lines. The secondary outputs of these transformers feed into meters for monitoring and relays for protection. If a fault occurs, such as a short circuit, the CTs detect the high current, and the relays trip the circuit breaker to isolate the fault.

Instrument Transformers are indispensable in power systems, providing a safe and accurate way to measure and monitor electrical parameters, ensuring the safety, reliability, and efficiency of the electrical grid.
