What Is a Bar Type TFT Module and Why Is It Used?

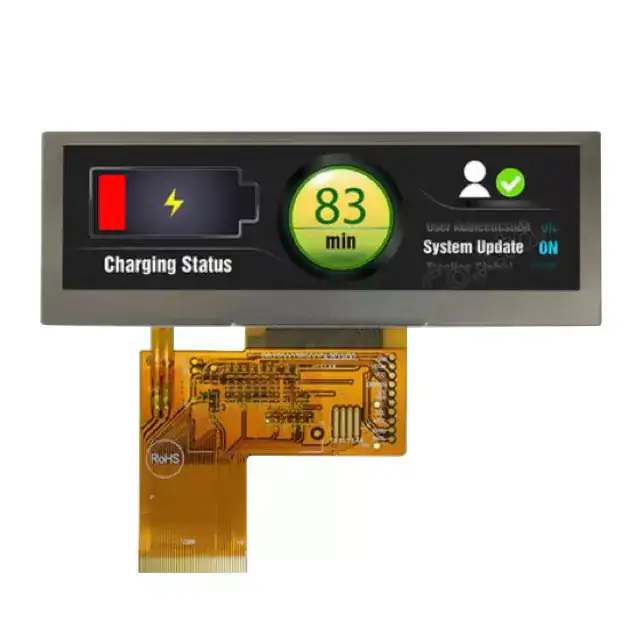

A Bar Type TFT (Thin-Film Transistor) Module is a specialized display component characterized by its elongated, narrow form factor resembling a "bar." These modules utilize TFT LCD technology to deliver sharp, vibrant visuals with excellent contrast and color reproduction, making them ideal for applications where a slim, horizontal display is needed.

Features of Bar Type TFT Modules

Slim and Elongated Design: Perfect for status indicators, progress bars, or information tickers.

High Resolution and Brightness: Ensures clear visibility even under varying lighting conditions.

Wide Viewing Angles: Maintains image quality when viewed from different positions.

Low Power Consumption: Suitable for battery-powered or energy-efficient devices.

Integrated Touch Options: Some models include capacitive or resistive touch functionality.

Common Applications

Industrial Control Panels: Displaying machine status or operational data.

Medical Equipment: Providing clear readouts in compact spaces.

Consumer Electronics: Audio equipment, home appliances, or wearable devices.

Automotive Displays: Dashboard information bars or control panels.

Public Information Systems: Ticket machines, kiosks, or advertising displays.

Advantages of Using Bar Type TFT Modules

Space Efficiency: Fits into narrow spaces where standard screens cannot.

Enhanced User Interface: Provides intuitive visual feedback in compact designs.

Durability: Often designed to withstand industrial environments.

Customizable: Available in various sizes, resolutions, and interface options.

Technical Specifications to Consider

Screen Size and Aspect Ratio

Resolution (Pixels)

Interface Type: SPI, LVDS, RGB, etc.

Brightness and Contrast Ratio

Operating Temperature Range

Backlight Type and Lifespan

Conclusion

The Bar Type TFT Module offers a versatile and efficient solution for applications requiring a sleek, narrow display without compromising image quality. Its adaptability and performance make it a preferred choice across industrial, medical, automotive, and consumer electronics sectors.
