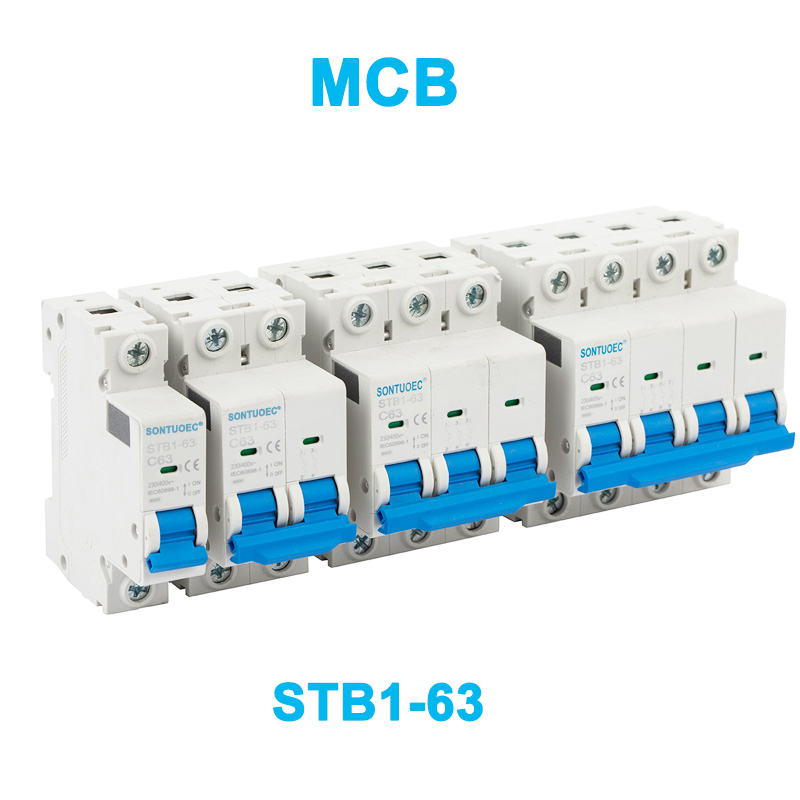

What Is a Miniature Circuit Breaker (MCB) and Why Is It Important?

A Miniature Circuit Breaker (MCB) is an essential electrical safety device designed to automatically protect electrical circuits from damage caused by overloads or short circuits. It functions by detecting fault currents and swiftly interrupting the power supply, preventing potential electrical fires, equipment damage, and personal injury.

How Does a Miniature Circuit Breaker Work?

An MCB continuously monitors the current flowing through a circuit. When the current exceeds the rated value, due to overload or a short circuit, the MCB trips and opens the circuit automatically. It uses two main mechanisms:

Thermal Trip: A bimetallic strip bends when heated by excessive current, triggering the trip.

Magnetic Trip: An electromagnet activates instantly in case of a short circuit.

After tripping, the MCB can be manually reset without replacing any parts, unlike traditional fuses.

Types of Miniature Circuit Breakers

1. Type B

  Trips between 3 to 5 times the rated current.

  Suitable for residential and light commercial applications with resistive loads.

2. Type C

  Trips between 5 to 10 times the rated current.

  Used in commercial and industrial environments with inductive loads like motors.

3. Type D

  Trips between 10 to 20 times the rated current.

  Ideal for heavy industrial loads and high inrush currents.

4. Other Specialized Types

  Include Type K, Z for specific applications.

Advantages of Miniature Circuit Breakers

Reusable and Easy to Reset: No need to replace like fuses.

Fast and Reliable Protection: Prevents electrical hazards quickly.

Compact Size: Saves space in electrical panels.

Clear Indication of Tripped Status: Simplifies troubleshooting.

Wide Range of Ratings: Suitable for various current and voltage requirements.

Common Applications

Residential electrical distribution boards

Commercial buildings and offices

Industrial plants and machinery

Renewable energy systems

Control panels and automation systems

Conclusion

A Miniature Circuit Breaker (MCB) is a vital safety device that safeguards electrical installations by preventing overload and short circuit damage. Its fast response, ease of use, and reliability make it indispensable in modern electrical systems, ensuring safety for both people and equipment.
